ASSEMBLY TUTORAIL ⬇️
CONFIGUrRABE RANGE OF MODE PARAMETERS ⬇️
Host startup time (configurable range 1-30 seconds)
Host stop time (configurable range 10-999 seconds)
Run once at the start time and once at the stop time / This constitutes one loop (configurable range 1-999 times).
Infinite Loop Setting: Entering 0 for the loop count will execute an infinite loop.
Parameter saving: The settings are saved by default and can be run directly on the next boot.
DUAL-HOST LINKAGE TUTORIAL ⬇️
Currently, the external connection mode only supports connection to BREATH CONTROL SYSEM 1.0.
KNOB OPERATION INSTRUCTIONS ⬇️

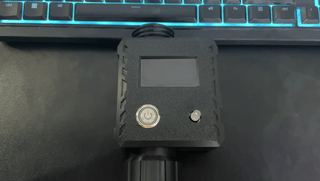

Startup host
Press and release the silver switch below the screen. The switch will illuminate a red light, initiating a self-test. The screen will light up after 2 seconds.
This switch can also be used as an emergency stop switch. In an emergency, pressing the switch will immediately cut off the power to the main unit and stop the odor delivery.

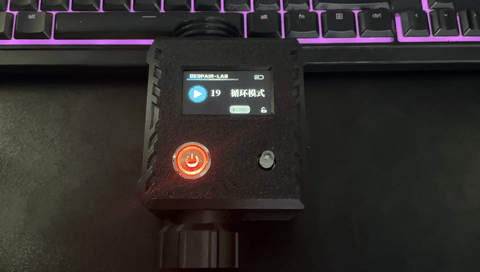

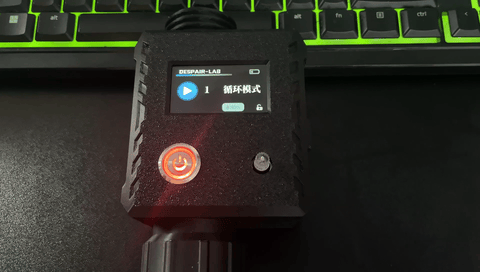

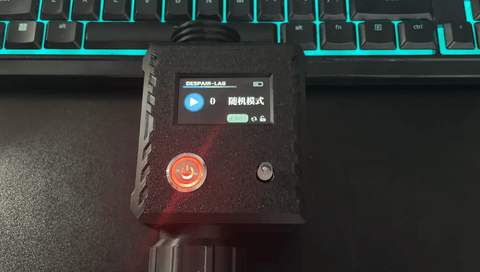

Select mode
rotate left and right to select mode
Double-click to enter the parameter settings page
Each mode setting is an independent parameter; you need to select the desired mode before entering the settings.

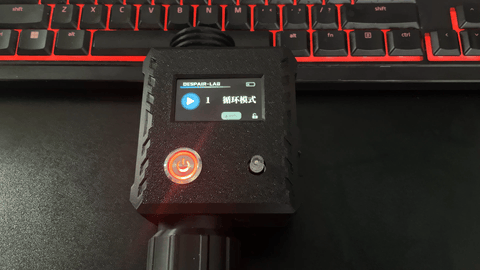

Adjust odor concentration
You can only adjust the concentration during mode startup.
Access the host settings.
Press and hold the knob for 2 seconds, then release.
Security Lock Mode
Press three times to enter security lock mode
